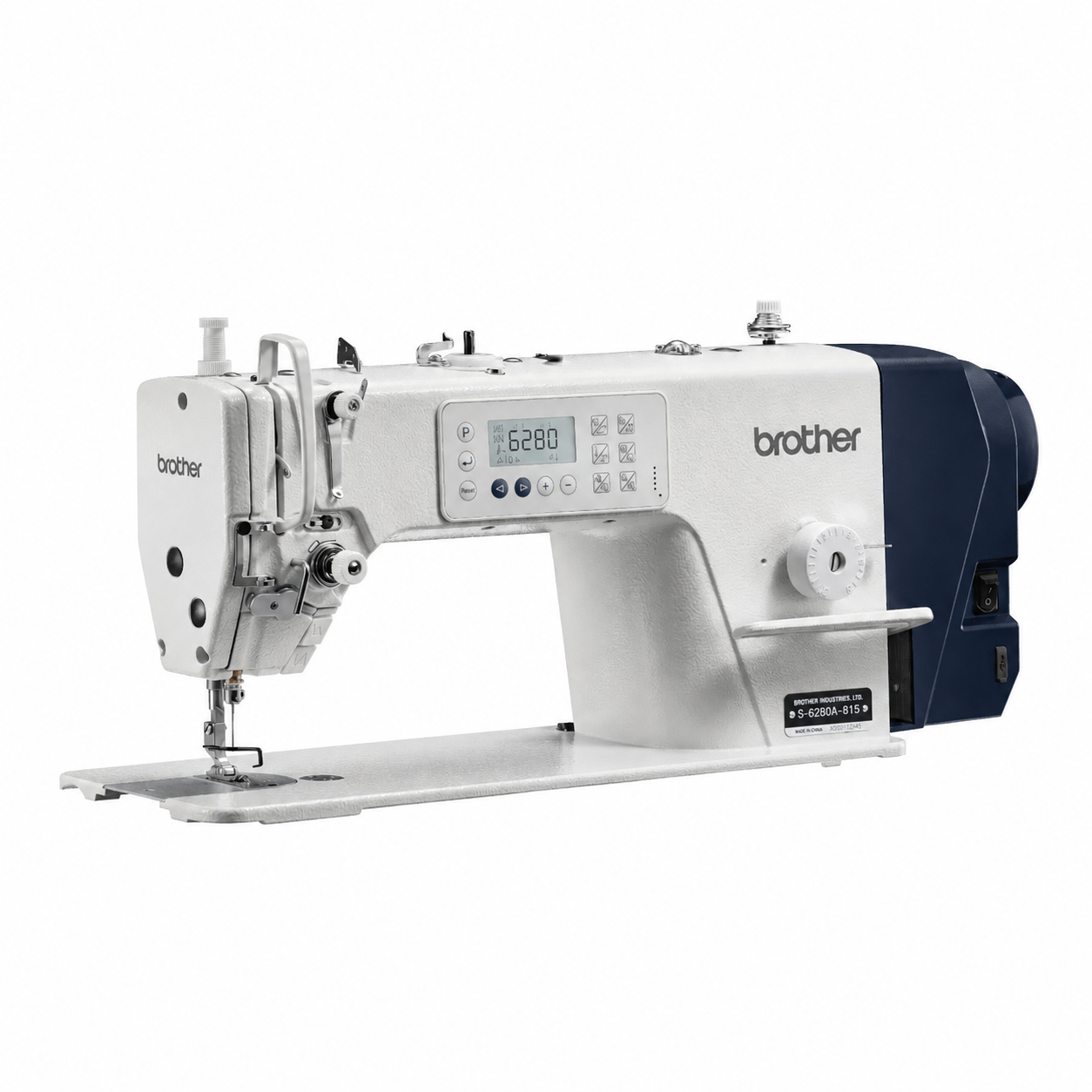

S-6280A Single Needle direct drive straight look stitcher for Heavy Material
・Comfortable and high-speed sewing
・LED light equipped as standard
・User-friendly operation panel
LED Light Equipped as Standard
Handy LED lights are equipped at the both side of the needle as a standard for better operation, and it prevents shadows on the garment.
User-friendly operation panel
Easy-to-understand key layout and display
Electric presser foot lifter
It increases productivity and it reduces the sound compared with mechanical pressure.
High operatbility with 2 hand switches
You can assign the function to each switch with various combinations, and it enables your operator to use the machine efficiently.
Specifications
- Single needle, drop feed, Direct Drive, with Thread trimmer,
thread wiper, automatic back tack. Operation Panel Integrated - Max. sewing speed 4000 - 5000 spm
- Max. stitch length 4,2 - 5,0 mm.
- Height of presser foot 6 mm - Knee lifter 13 mm
- Clean sewing, energy saving model
- Sewing light integrated
- Presser foot integrated
Needle Specifications
DBX1, DPX5 no#19-#22
